Introduction

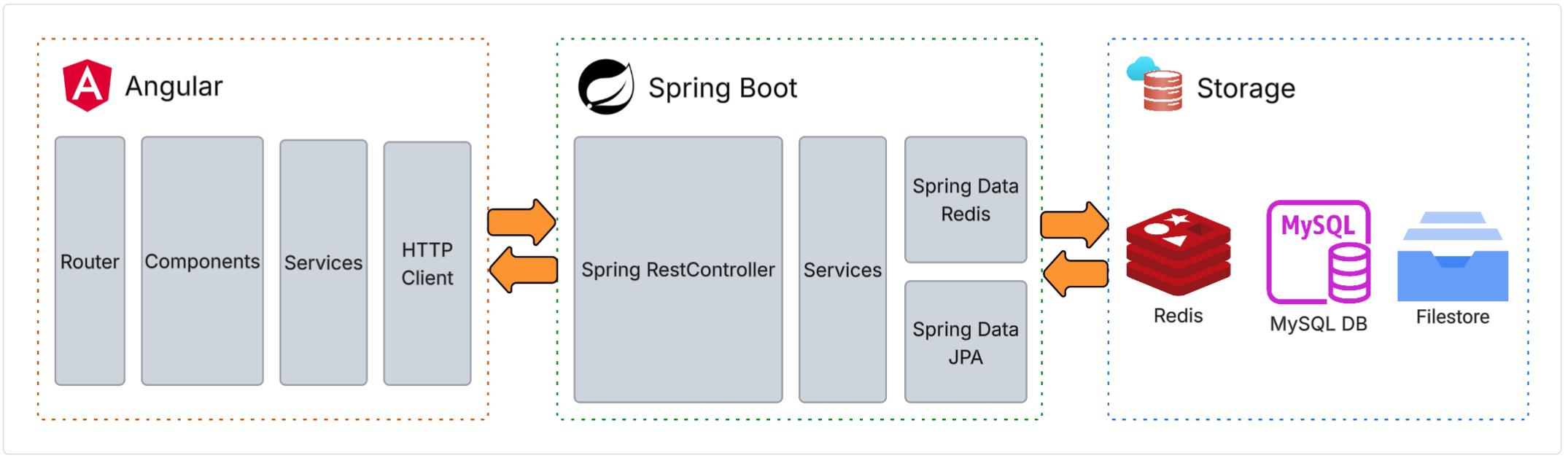

WISE application architecture

WISE is a full-stack application, comprised of

  • Angular (client)
  • Spring Boot (server)
  • Redis, MySQL, Filestore (storage)

Angular (client)

  • Router routes users to pages that are comprised of Components.
  • Components invoke Services for logic and data retrieval.
  • Services utilize HTTP Client to send/retrieve data to/from the Server.

Spring Boot (server)

  • RestControllers provide endpoints to handle REST requests coming from the client. They invoke Services for logic and and data retrieval.
  • Services utilize Spring Data JPA and Spring Data Redis to persist data in Redis and MySQL. They also persist user content to Filestore.

Redis, MySQL, Filestore (storage)

  • Redis stores key/value pairs needed for fast look-up like user sessions.
  • MySQL stores relational data like user accounts, classroom runs, and student data.
  • Filestore stores curriculum content and user assets.
